| Instructions for use： |
|
| Way of working: | S1 |
| Protection level: | IP42 |
| Insulation class: | B |
| Environment temperature: | -30℃~50℃ |
| Application range: |
FAN BLADE Φ172 240~300 m³/h |
| Φ200 360~460m³/h | |
| Φ230 480-680m³/h | |
| Φ250 700~1050m³/h | |
| Φ300 1100~1500m³/h |
-
-

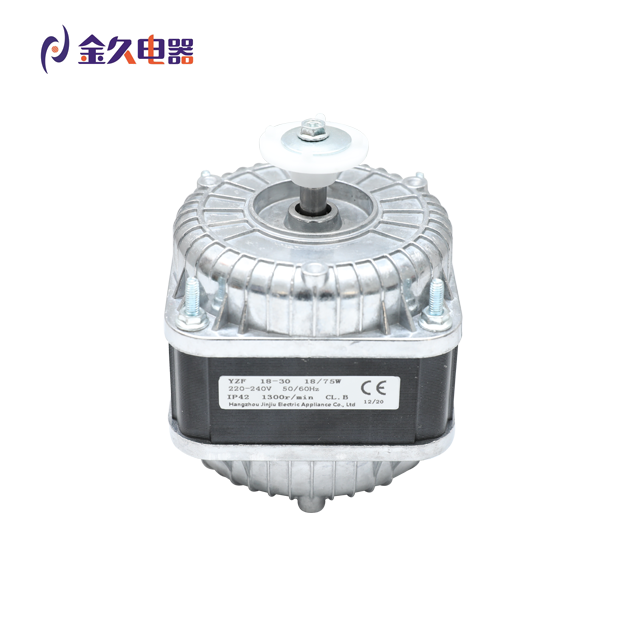

Type Voltage Frequency Pated Input Output Rated current Rated Speed Air volume Fan blade Net weight A B C D E License （V） （HZ） （W） （W） （A） (r/min) (m³/h CFM) (mm) (kg) (mm) (mm) (mm) (mm) (mm) YZF5-13-26 220-240 50/60 20 2 0.14 1300 260 Φ172 0.8 13 12 43 78 - ce ccc RoHS YZF5-13-26 220-240 50/60 29 5 0.20 1300 360 Φ200 0.8 13 12 43 78 - ce ccc RoHS YZF6-13-26 110-120 60 33 6 0.55 1550 430 ce YZF7-20-26 220-240 50/60 31 7 0.23 1300 480 Φ230 1.1 19 13 44 85 - ce ccc RoHS YZF10-20-26 220-240 50/60 36 10 0.25 1300 500 Φ230 1.1 19 13 44 85 - ce ccc RoHS 110-120 60 55 10 0.80 1550 620 ce YZF12-20-26 220-240 50/60 54 12 0.36 1300 720 Φ230 1.1 19 13 44 85 - ce ccc RoHS YZF16-25-26 220-240 50/60 60 16 0.45 1300 1000 Φ250 1.4 25 14 45 92 - ce ccc RoHS YZF18-25-26 110-120 60 70 18 1.01 1550 1050 ce YZF18-30-26 220-240 50/60 70 18 0.50 1300 1050 Φ250 1.5 30 17 48 101 21 ce ccc RoHS 110-120 60 75 18 1010 1450 ce YZF25-40-26 220-240 50/60 90 25 0.70 1300 1250 Φ300 1.8 40 18 49 112 31 ce ccc RoHS 110-120 60 100 25 1.40 1450 ce YZF34-45-26 220-240 50/60 110 34 0.85 1300 1400 Φ300 2.0 45 22 53 121 36 ce ccc RoHS 110-120 60 110 34 1.50 1450 ce -
