Shaded Pole Fan Motor Manufacturers

Hangzhou Jinjiu Electric Appliance Co Ltd. is a professional manufacturer of Shaded Pole Fan Motor, Refrigeration Fan Motor, and Fan Motor.

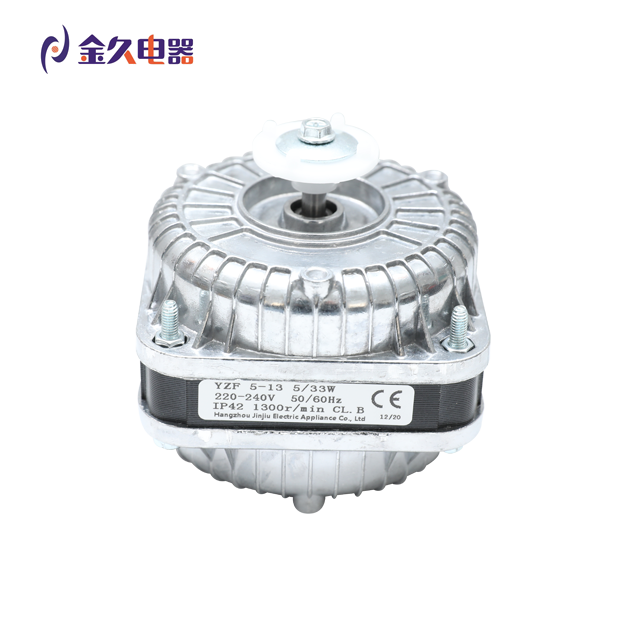

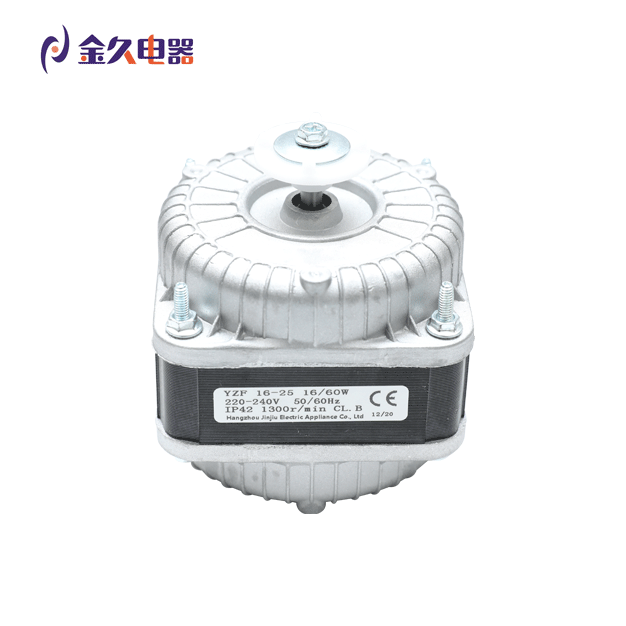

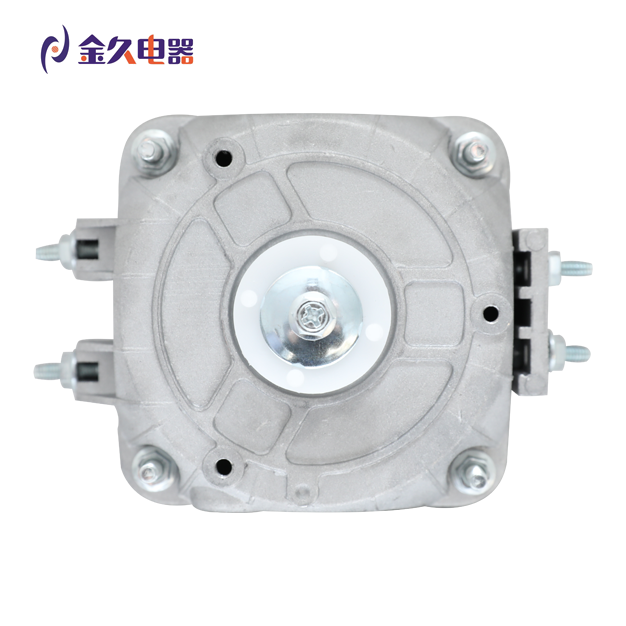

Shaded Pole Fan Motor with sleeve bearing and ball bearing. They are two winding methods, one is part wining, another one is full winding(complete winding).
Motor output power range from 1W-34W, adjust the motor's output power by changing the thickness of the core and the winding parameters. Motor insulation class B, protection class IP42.According to customer requirements of protection class IP44 motors.Output power 10W or less motor using impedance protection, output power greater than 10W 125-135 degrees using a thermal protector.
The ambient temperature is -30℃~50℃. Motor average life is 20,000 hours. We have CE CCC and Rohs certifications.

News

  • Jinjiu established in 2014

    Jinjiu established in 2014

    Hangzhou Jinjiu Electric Appliance Co Ltd. ( Hangzhou Fuyang Jinma Motor Factory) was established in...

    By:JINJIU
  • About Jinjiu

    About Jinjiu

    Hangzhou Jinjiu Electric Appliance Co Ltd. ( Hangzhou Fuyang Jinma Motor Factory), is a professiona...

    By:JINJIU
  • Conguratulations！

    Conguratulations！

    Congratulations to our official online line, we will serve you better !

    By:JINJIU

Industry knowledge

A shaded pole fan motor is a type of electric motor that is commonly used to power small to medium-sized axial fans. The motor is characterized by a simple design, low cost, and high reliability, making it a popular choice for a variety of low-power applications.
The shaded pole motor gets its name from the fact that the stator, or stationary part of the motor, is shaded by a portion of a copper ring, also known as the shading coil. When an AC voltage is applied to the motor, the shading coil generates a magnetic field that is out of phase with the main magnetic field of the stator. This results in a rotating magnetic field that induces a current in the rotor, which causes it to rotate.

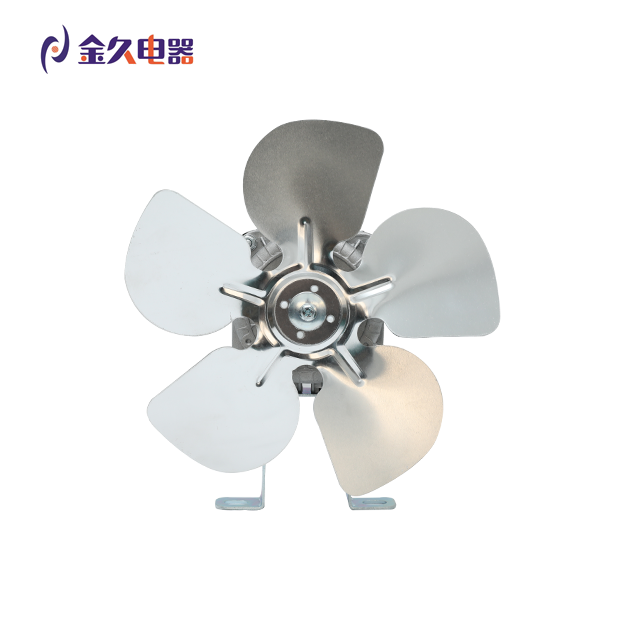

The rotor of a shaded pole fan motor is made of a thin aluminum or copper ring that is laminated to reduce eddy current losses. The fan blades are attached to the rotor and rotate as the rotor spins.
Shaded pole fan motors are commonly used in a variety of applications where a low starting torque and low noise are required, such as in small fans, air purifiers, and other household appliances. They are also commonly used in refrigeration systems and other low-power applications.
While shaded pole fan motors are not as efficient as other types of motors, they are simple, reliable, and cost-effective. They are designed for long life, low maintenance, and ease of installation. Additionally, they can be designed to run on a range of voltages and frequencies, making them suitable for use in a variety of international markets.
